What HP Do I Need for Garage Door Opener? Size Guide

what hp do i need for garage door opener

What HP Do I Need for Garage Door Opener? Size Guide

Wondering, “what HP do I need for garage door opener?” A 1/2 HP-class opener is a useful starting point for a lightweight, properly balanced sectional door. For a heavier door, compare 3/4 HP-class models and higher, but approve the purchase only after checking the exact manufacturer’s door limits.

That distinction matters: a bigger number on the box does not automatically mean a higher permitted door weight. This guide focuses on residential overhead sectional doors and explains how to turn power labels into a sensible shortlist.

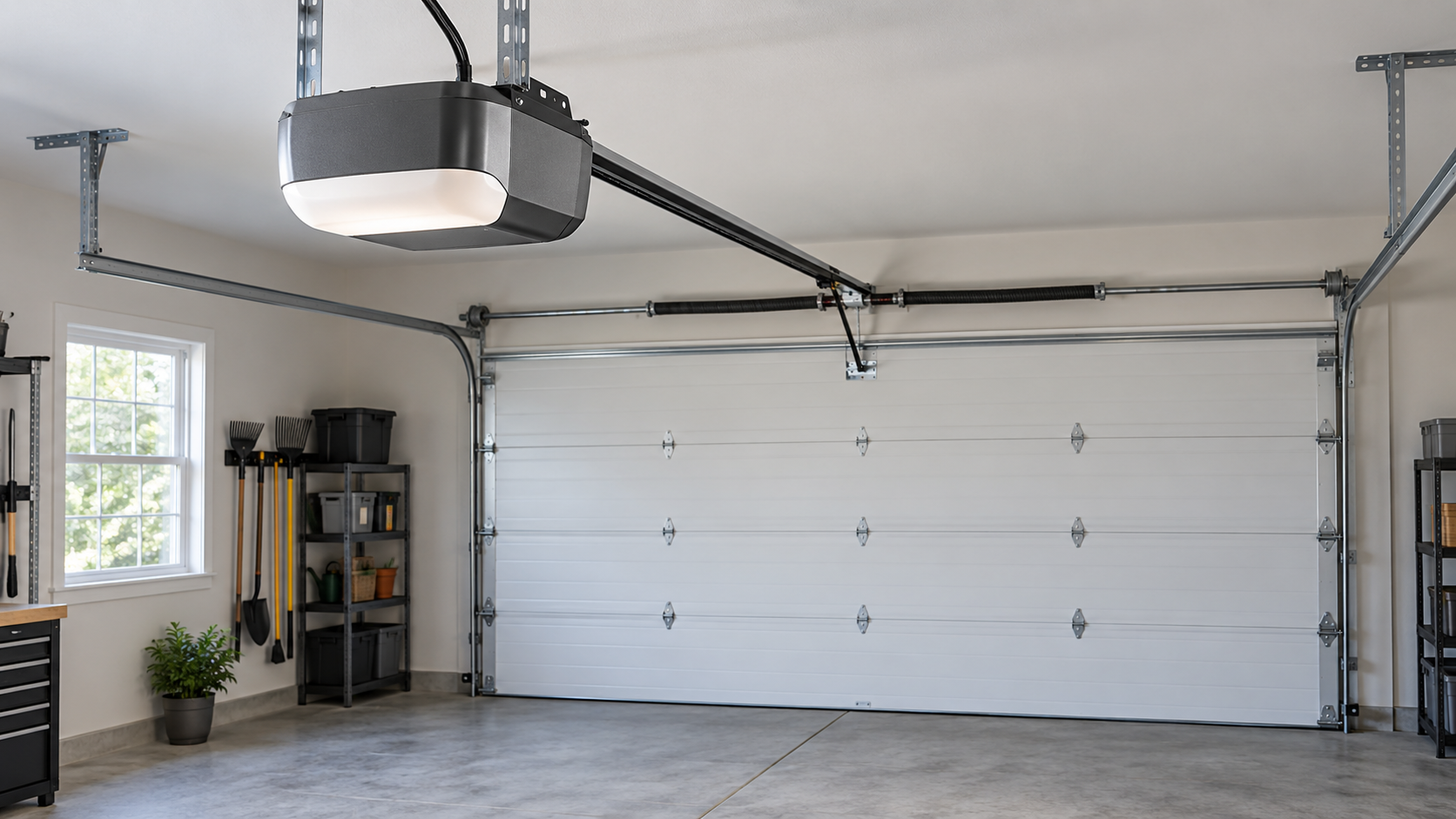

Ceiling-mounted opener and central rail above a closed white sectional garage door.
A residential opener and sectional door. AI-generated editorial illustration; not an installation diagram.

A Quick Garage Door Opener Horsepower Guide

Use this table to begin comparing products, not to certify compatibility. Door construction, dimensions, condition, and the selected opener’s specifications determine the final answer.

Door or situationWhere to beginWhat decides the purchase
Lightweight, standard sectional door1/2 HP classApproved door type, weight, and height
Heavier insulated or wider sectional doorCompare 3/4 HP class and higherActual model limits, not width alone
Heavy wood, overlays, or oversized doorInstaller-selected compatible modelDocumented application approval and installation requirements
Door suddenly feels heavy or moves unevenlyProfessional inspection firstDoor condition and balance before opener selection

Think of these categories as shopping directions. There is no universal rule that every double door needs 3/4 HP, or that every 1 HP opener can operate any wooden door.

HP and HPc: Read the Small Print

Horsepower describes power, but opener packaging may use a comparison rating. Genie defines HPc as “Horsepower Comparable,” indicating that the opener meets its lifting-force specification for the stated horsepower class. Its Model 1035 specifications and HPc footnote explain this distinction.

Do not treat an HPc label as a direct measurement of continuous motor output, or assume that similarly named ratings from different manufacturers use identical tests. Read the definition attached to each product.

A practical comparison starts with the complete model number. Record its supported door construction, maximum dimensions, stated weight capacity, and required accessories before comparing convenience features.

Why a Higher Rating Can Have the Same Weight Limit

Consider three published examples. Genie’s Model 1035 carries a 1/2 HPc rating and a 350 lb door limit; its standard setup serves seven-foot doors, with an extension kit required for eight-foot doors.

The Genie Chain Drive 750 Model 7035-PV is rated 3/4 HPc for sectional doors up to 500 lb and seven feet tall. The StealthDrive 750 Model 7055-TKV is rated 1-1/4 HPc, yet also lists 500 lb and seven feet, with an optional eight-foot extension.

Both 750 models list battery backup, while their drive systems differ. These are specification examples, not product rankings; their shared weight limit shows why the largest power label should not decide your purchase.

Five Checks Before You Choose an Opener

1. Identify the Door and Its Construction

Find the door manufacturer and model on accessible paperwork or an identification label. Ask the supplier for the weight of your exact configuration, including windows, reinforcement, and decorative additions.

A single steel skin, an insulated sandwich panel, and a wood-faced door can place different demands on the system. Our explanation of garage door thickness and construction helps distinguish section depth from the material inside it.

If the weight is missing, send the dealer photographs and the model details. Do not disconnect spring hardware or attempt to put the door on a household scale; ask a technician to establish the information needed for selection.

Single-skin steel and foam-insulated garage door panel samples standing on a workbench.
Door construction is one of the details to identify before selecting an opener. AI-generated editorial illustration.

2. Confirm Width and Height Separately

“Two-car garage” describes the space, not a complete door specification. Write down the actual opening dimensions and confirm them against the selected model’s installation documents.

Height affects the required travel and rail setup. If you are comparing a 16-by-8-foot insulated garage door, highlight the eight-foot height when requesting a quote; a standard seven-foot opener package may require an approved extension.

3. Establish That the Door Is in Good Condition

An opener should move a correctly balanced door. If yours has become difficult to operate, jerks, or hangs unevenly, arrange diagnosis before buying additional motor power.

A stronger opener is not a repair for an unbalanced door. DASMA’s opener safety guidance specifically warns against that approach and recommends a trained technician. Do not adjust springs, cables, or bottom brackets yourself.

4. Check the Installation Space

Photograph the closed door, ceiling layout, and existing opener from floor level. Ask the installer to confirm clearance, mounting support, reinforcement, and electrical requirements for the proposed unit.

Matching horsepower does not establish that an old rail or sensor system can be reused. Our guide to replacing a garage door opener provides background; require compatibility confirmation for every reused component.

5. Describe How You Use the Garage

Tell the supplier roughly how often the door operates and whether repeated trips occur close together. Ask whether the model suits that pattern instead of assuming more horsepower guarantees greater durability.

Also list practical priorities: a room above the garage, access during outages, existing remotes, or smartphone control. These details can separate two otherwise compatible products more usefully than their power labels.

Choosing Between 1/2 HP, 3/4 HP, and Higher Ratings

For an ordinary lightweight door, begin with a compatible 1/2 HP-class model. Moving up is worth considering when the lower-rated product falls outside your door’s specifications or lacks a feature you need.

For example, imagine a documented 400 lb sectional door. The 350 lb Model 1035 example above would not qualify, while a 500 lb model could remain on the shortlist, subject to every other installation requirement.

For an unusually heavy or custom door, ask an installer to specify the opener from the door documentation. Avoid choosing a 1 HP or 1-1/4 HP unit simply because the existing motor struggles.

Three Buying Mistakes to Avoid

First, do not copy the old opener’s rating without checking the door. The previous choice may have been unsuitable, and the door may have changed since it was installed.

Second, keep weight capacity and travel height in separate columns when comparing products. An opener can meet one requirement and fail the other; neither a larger motor nor an attractive feature package resolves that mismatch.

Third, distinguish a motor warranty from coverage for the entire installation. Ask who handles a service visit, which components are covered, and whether labor is included, then keep that answer with the quote.

Compare the Whole Installation Price

Request itemized quotes for the same door and installation scope. Include the opener, rail or extension, mounting work, compatible controls, removal of old equipment, setup, and final safety testing.

Ask whether battery backup is included and what the warranty covers for parts and labor. A lower equipment price may be less attractive once required accessories are added; a higher price needs a clear explanation of the benefits you will actually use.

Before accepting, ask the supplier to identify the exact model and explain why it fits your door. A written answer is easier to compare than a quote that only says “heavy-duty opener,” especially when different companies propose different power ratings.

For scheduling questions, our garage door opener installation planning guide outlines the work involved. Get the installer’s estimate for your specific garage before arranging your day around it.

Keep Safety Features Working After Installation

Before handover, have the installer demonstrate the controls, emergency release, and manufacturer-specified safety tests. Keep the manual and model information somewhere easy to find.

what hp do i need for garage door opener
what hp do i need for garage door opener
Keep safety sensors unobstructed and follow the model instructions. AI-generated editorial illustration.

Keep the photo-eye path clear and follow the manual’s inspection schedule. If the door reverses unexpectedly or will not close normally, check the manual’s indicators and review our garage door sensor troubleshooting guide; do not bypass the sensors.

Stop using the opener if a safety test fails, the door becomes crooked, or a spring or cable appears damaged. Arrange qualified service instead of increasing the force setting to push through resistance.

Frequently Asked Questions

Is 1/2 HP enough for a double garage door?

It can be, provided the exact opener is approved for that door’s weight, size, and configuration. A double-width label alone cannot establish compatibility.

Do insulated garage doors always need 3/4 HP?

No; insulation is only one part of the door specification. Obtain the finished door’s weight and compare it with the opener’s documented limits.

Can I replace a 1/2 HP opener with a stronger model?

Yes, if the replacement is compatible with the door and installed according to its instructions. Confirm the complete installation requirements rather than assuming the old hardware will fit.

Will more horsepower make my garage door open faster?

A higher power label does not, by itself, establish opening speed. Compare the manufacturer’s published speed specification for each model if faster access matters to you.

Choose From the Door Specifications

Start with the door’s model, dimensions, documented weight, and condition. Then select a compatible opener with the features you value, and have its installation and safety functions checked before everyday use.
